Tutorial: a real world sample

Demonstration : configuring (the setting of) your favorite web browser

This tutorial shows to you an example of Rougail use on how to set a proxy in the Mozilla Firefox browser.

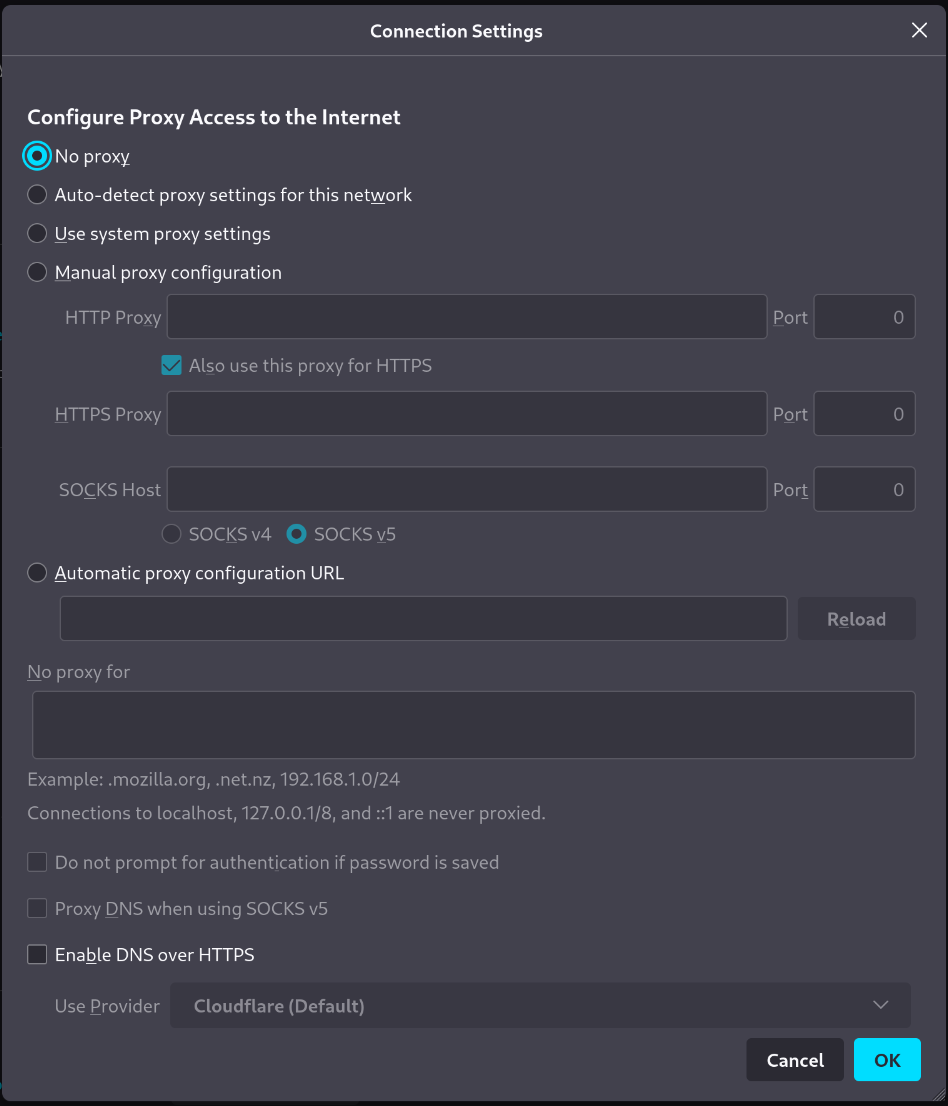

More precisely, this tutorial aims at reproducing this Mozilla Firefox settings page:

_images/firefox.png

Important

Here we are in the configuration validation use case, that is the values entered by the user have to be validated. It’s a common use case, but not the only one.

Let’s explain this use case.

The Firefox proxy configuration

The proxy family

Let’s create our first dictionary.

Let’s create a folder named dict and a dictionary file inside

We will put our dictionary files in this folder.

Then let’s put our first dictionary file in this folder, named 00-proxy.yml

the 00-proxy.yml file
1 ---
2 version: '1.0'
3 proxy:
4   description: Proxy configuration in order to have access to the internet
5   type: family

We can see that we have defined a family here, and this family is empty (that is, the family container contains no variable yet).

If a family is empty

We need to specify the family type (line 5) here because if we don’t, the Rougail’s type engine will infer it by default as a variable.

It’s because we don’t have set any variable inside.

Note

The variables will be created in several files for educational purposes. Obviously all the variables can be put in the same file.

The proxy’s configuration type

In the Firefox configuration, it is possible to define several configuration modes, from no proxy at all (no proxy) to a kind of automatic configuration mode from a file (set up proxy configuration from a file).

We’re gonna create a first variable in this family with “Proxy mode” as the description. Let’s create a second dict/01-proxy_mode.yml file.

the 001-proxy_mode.yml file
 1 ---
 2 version: '1.0'
 3 proxy:
 4   proxy_mode:
 5     description: Proxy mode
 6     type: choice
 7     choices:
 8       - No proxy
 9       - Auto-detect proxy settings for this network
10       - Use system proxy settings
11       - Manual proxy configuration
12       - Automatic proxy configuration URL
13     default: No proxy

The proxy_mode variable requires a value (that is, None is not an option). It shall have a value, but what if the user does not specify any value? There is line 13, a possibility of setting a default value, wich is No proxy as the default.

The proxy_mode setting is “choice” (type: choice) means that there is a list of available values that can be selected. We say that the proxy_mode variable is constrained (by choices).

Line 8 to 12, we have the list of the possible (authorized) values:

  • No proxy

  • Auto-detect proxy settings for this network

  • Use system proxy settings

  • Manual proxy configuration

  • Automatic proxy configuration URL

Now let’s test our first two dictionaries:

>>> from rougail import Rougail, RougailConfig
>>> from pprint import pprint
>>> RougailConfig['dictionaries_dir'] = ['dict']
>>> rougail = Rougail()
>>> config = rougail.get_config()
>>> config.property.read_only()
>>> pprint(config.value.get(), sort_dicts=False)
{'rougail.proxy.proxy_mode': 'No proxy'}

The manual mode

OK then. What happens when you select the “Manual proxy configuration”?

A good configuration design is to place all the proxy’s manual configuration in a family. Let’s create the dict/02-proxy_manual.yml dictionary:

the the dict/02-proxy_manual.yml file
 ---
 version: '1.0'
 proxy:
   manual:
     description: Manual proxy configuration
     type: family
     disabled:
       type: jinja
       jinja: |
         {% if rougail.proxy.proxy_mode != 'Manual proxy configuration' %}
         the proxy mode is not manual
         {% endif %}

Well, if the user selects the “Manual proxy configuration” proxy mode, we want to see a new subfamily (that is, a new set of configuration variables) called manual to appear (which is disabled).

subfamily

A subfamily is just a family inside a family, a family that contains a family.

What about this Jinja type?

If the Jinja template returns some text, then the family will be disabled. Otherwise it is accessible. Deactivating a family means that we will not be able to access it as well as the variables or families included in this family.

Note

If the Jinja template does not return any text, the variable will be enabled. Here we are using the Jinja condition statement.

Jinja

Jinja is a template engine. we are using Jinja in a classical way, that is, Jinja allows us to handle different cases, for example with the if statement.

The HTTP proxy configuration

In this family let’s add a subfamily named http_proxy, containing the address and port configuration variables.

Let’s create the dict/03-proxy_manual_http_proxy.yml dictionary:

the the dict/02-proxy_manual.yml file
 1 ---
 2 version: '1.0'
 3 proxy:
 4   manual:
 5     http_proxy:
 6       description: HTTP Proxy
 7       address:
 8         description: HTTP address
 9         type: domainname
10       port:
11         description: HTTP Port
12         type: port
13         default: '8080'

Both variables address and port have particular types (respectively domainname line 9 and port line 12) to validate the values configured by the user.

Note

No need to specify the type of the http_proxy as a family type, because here we have declared variables inside of it.

Duplicating the HTTP configuration to HTTPS

We then want to offer the user the possibility of providing the same proxy for the HTTPS requests. Let’s create the dict/04-proxy_manual_http_use_for_https.yml file:

the dict/04-proxy_manual_http_use_for_https.yml file
 version: '1.0'
 proxy:
   manual:
     use_for_https:
       description: Also use this proxy for HTTPS
       type: boolean

This variable is a boolean type, its default value is True.

HTTPS proxy configuration detail

Let’s add a new subfamily named ssl_proxy, containing the address and port variables.

Let’s create the dict/05-proxy_manual_ssl_proxy.yml file:

the dict/04-proxy_manual_http_use_for_https.yml file
 1 ---
 2 version: '1.0'
 3 proxy:
 4   manual:
 5     ssl_proxy:
 6       description: HTTPS Proxy
 7       hidden:
 8         type: variable
 9         variable: rougail.proxy.manual.use_for_https
10       address:
11         description: HTTPS address
12         type: domainname
13         default:
14           type: jinja
15           jinja: |
16             {% if rougail.proxy.manual.use_for_https %}
17             {{ rougail.proxy.manual.http_proxy.address }}
18             {% endif %}
19       port:
20         description: HTTPS Port
21         type: port
22         default:
23           type: jinja
24           jinja: |
25             {% if rougail.proxy.manual.use_for_https %}
26             {{ rougail.proxy.manual.http_proxy.port }}
27             {% endif %}

Depending on the value of the rougail.proxy.mandatory.use_for_https variable, this family will appear or disappear (the hidden setting line 7). Unlike earlier, this time it is not necessary to use a Jinja function.

Let’s notice that the family is not disabled because the variables will need to remain accessible (yet in read-only mode).

The address and port variables are copied from HTTP to HTTPS if rougail.proxy.use_for_https is set to True.

Now let’s test all of it:

>>> from rougail import Rougail, RougailConfig
>>> from pprint import pprint
>>> RougailConfig['dictionaries_dir'] = ['dict']
>>> rougail = Rougail()
>>> config = rougail.get_config()
>>> config.property.read_only()
>>> pprint(config.value.get(), sort_dicts=False)
{'rougail.proxy.proxy_mode': 'No proxy'}

At this time the proxy is not configured yet, so we do not see any variables. Let’s look at what happens if we try to access the rougail.proxy.manual variable if we are not in manual mode:

>>> pprint(config.option('rougail.proxy.manual').value.get(), sort_dicts=False)

We have an error (with the message defined in the Jinja template):

tiramisu.error.PropertiesOptionError: cannot access to optiondescription "Manual proxy configuration" because has property "disabled" (the mode proxy is not manual)

Let’s configure the proxy in manual mode

>>> config.property.read_write()
>>> config.option('rougail.proxy.proxy_mode').value.set('Manual proxy configuration')
>>> config.option('rougail.proxy.manual.http_proxy.address').value.set('proxy.example')
>>> pprint(config.value.get(), sort_dicts=False)

We can see that the returned variables does have the desired values:

{'rougail.proxy.proxy_mode': 'Manual proxy configuration',
 'rougail.proxy.manual.http_proxy.address': 'proxy.example',
 'rougail.proxy.manual.http_proxy.port': '8080',
 'rougail.proxy.manual.use_for_https': True}

Let’s set the read_only mode:

>>> config.property.read_only()
>>> pprint(config.value.get(), sort_dicts=False)
{'rougail.proxy.proxy_mode': 'Manual proxy configuration',
 'rougail.proxy.manual.http_proxy.address': 'proxy.example',
 'rougail.proxy.manual.http_proxy.port': '8080',
 'rougail.proxy.manual.use_for_https': True,
 'rougail.proxy.manual.ssl_proxy.address': 'proxy.example',
 'rougail.proxy.manual.ssl_proxy.port': '8080'}

In the read_only mode, we can see that the HTTPS configuration appears.

Note

We can see that rougail.proxy.manual.http_proxy values have been copied in rougail.proxy.manual.ssl_proxy too…

Changing values programmatically

We are going to use the Tiramisu API to manipulate programmatically the different variables.

First, let’s set rougail.proxy.manual.use_for_https to False. It is now possible to configure the HTTPS:

>>> config.property.read_write()
>>> config.option('rougail.proxy.manual.use_for_https').value.set(False)
>>> config.option('rougail.proxy.manual.ssl_proxy.address').value.set('other.proxy.example')
>>> pprint(config.value.get(), sort_dicts=False)
{'rougail.proxy.proxy_mode': 'Manual proxy configuration',
 'rougail.proxy.manual.http_proxy.address': 'proxy.example',
 'rougail.proxy.manual.http_proxy.port': '8080',
 'rougail.proxy.manual.use_for_https': False,
 'rougail.proxy.manual.ssl_proxy.address': 'other.proxy.example',
 'rougail.proxy.manual.ssl_proxy.port': '8080'}

The value of the variable rougail.proxy.manual.ssl_proxy.address has actually been modified. But if this variable is hidden again, then the value comes back to the default value:

>>> config.option('rougail.proxy.manual.use_for_https').value.set(False)
>>> config.property.read_only()
>>> pprint(config.value.get(), sort_dicts=False)
{'rougail.proxy.proxy_mode': 'Manual proxy configuration',
 'rougail.proxy.manual.http_proxy.address': 'proxy.example',
 'rougail.proxy.manual.http_proxy.port': '8080',
 'rougail.proxy.manual.use_for_https': False,
 'rougail.proxy.manual.ssl_proxy.address': 'proxy.example',
 'rougail.proxy.manual.ssl_proxy.port': '8080'}

SOCK’s proxy configuration

Let’s add a new subfamily named socks_proxy with the address, port and version variables.

Let’s create the dict/06-proxy_manual_socks_proxy.yml file:

the dict/06-proxy_manual_socks_proxy.yml file
 ---
 version: '1.0'
 proxy:
   manual:
     socks_proxy:
       description: SOCKS Proxy
       address:
         description: SOCKS Address
         type: domainname
       port:
         description: SOCKS Port
         type: port
       version:
         description: SOCKS host version used by proxy
         type: choice
         choices:
           - v4
           - v5
         default: v5

There’s nothing new to learn with this file.

The automatic detection mode

Let’s add a new variable named auto.

Let’s create the dict/07-proxy_auto.yml file:

the dict/07-proxy_auto.yml file
 ---
 version: '1.0'
 proxy:
   auto:
     type: web_address
     description: Automatic proxy configuration URL
     disabled:
       type: jinja
       jinja: |
         {% if rougail.proxy.proxy_mode != 'Automatic proxy configuration URL' %}
         the proxy mode is not automatic
         {% endif %}

The web_address type imposes a value starting with http:// or https://. This variable is activated when the proxy is in automatic mode.

The proxy’s exceptions

Finally, let’s add a variable containing proxy exceptions.

Let’s create the dict/07-proxy_no_proxy.yml file:

the dict/07-proxy_no_proxy.yml file
 1 ---
 2 version: '1.0'
 3 proxy:
 4   no_proxy:
 5     description: Address for which proxy will be desactivated
 6     multi: true
 7     type: "domainname"
 8     params:
 9       allow_ip: true
10       allow_cidr_network: true
11       allow_without_dot: true
12       allow_startswith_dot: true
13     disabled:
14       type: jinja
15       jinja: |
16         {% if rougail.proxy.proxy_mode == 'No proxy' %}
17         proxy mode is no proxy
18         {% endif %}
19     mandatory: false

This no_proxy variable is much like a domainname type except that we add a params line 7, we authorize the :

  • IP

  • CIDR networks

  • machine names (without '.')

  • sub-domaines like .example

There can be multiple exceptions to the proxy, so the variable is multi (line5). This variable is only accessible if no proxy is defined (disabled).

multi

A multi is a multiple variable, that is a variable that can have multiple values.

The no_proxy variable do not requires a value (that is, None is an option), there is line 19 this statement mandatory: false which means that this variable is not mandatory.

Let’s test it:

>>> from rougail import Rougail, RougailConfig
>>> from pprint import pprint
>>> RougailConfig['dictionaries_dir'] = ['dict']
>>> rougail = Rougail()
>>> config = rougail.get_config()
>>> config.property.read_write()
>>> config.option('rougail.proxy.proxy_mode').value.set('Manual proxy configuration')
>>> config.option('rougail.proxy.manual.http_proxy.address').value.set('proxy.example')
>>> config.option('rougail.proxy.no_proxy').value.set(['.example', '192.168.1.1'])
>>> config.property.read_only()
>>> pprint(config.value.get(), sort_dicts=False)

It outputs:

{'rougail.proxy.proxy_mode': 'Manual proxy configuration',
 'rougail.proxy.manual.http_proxy.address': 'proxy.example',
 'rougail.proxy.manual.http_proxy.port': '8080',
 'rougail.proxy.manual.use_for_https': True,
 'rougail.proxy.manual.ssl_proxy.address': 'proxy.example',
 'rougail.proxy.manual.ssl_proxy.port': '8080',
 'rougail.proxy.manual.socks_proxy.address': None,
 'rougail.proxy.manual.socks_proxy.port': None,
 'rougail.proxy.manual.socks_proxy.version': 'v5',
 'rougail.proxy.no_proxy': ['.example', '192.168.1.1']}

But not possible to put an invalid value:

>>> config.option('rougail.proxy.no_proxy').value.set(['.example', '192.168.1.1', 'not valid'])
[..]
tiramisu.error.ValueOptionError: "not valid" is an invalid domain name for "Address for which proxy will be desactivated", could be a IP, otherwise must start with lowercase characters followed by lowercase characters, number, "-" and "." characters are allowed

The authentification request

Nothing special when creating the authentication request. To do this, let’s create a dict/08-proxy_prompt_authentication.yml file:

the dict/08-proxy_prompt_authentication.yml file
 1 ---
 2 version: '1.0'
 3 proxy:
 4   prompt_authentication:
 5     description: Prompt for authentication if password is saved
 6     type: boolean
 7     default: true
 8     disabled:
 9       type: jinja
10       jinja: |
11         {% if rougail.proxy.proxy_mode == 'No proxy' %}
12         proxy mode is no proxy
13         {% endif %}

The proxy SOCKS v5’s DNS

The DNS variable for the SOCKS v5 proxy only appears if the proxy is configured and the version of the SOCKS proxy selected is v5.

Let’s create a dict/09-proxy_proxy_dns_socks5.yml file:

the dict/09-proxy_proxy_dns_socks5.yml file
 1 ---
 2 version: '1.0'
 3 proxy:
 4   proxy_dns_socks5:
 5     description: Use proxy DNS when using SOCKS v5
 6     type: boolean
 7     default: false
 8     disabled:
 9       type: jinja
10       params:
11         socks_version:
12           type: variable
13           variable: rougail.proxy.manual.socks_proxy.version
14           propertyerror: false
15       jinja: |
16         {% if rougail.proxy.proxy_mode == 'No proxy' %}
17         the proxy mode is no proxy
18         {% elif socks_version is undefined or socks_version == 'v4' %}
19         socks version is v4
20         {% endif %}

The difficulty here is that the rougail.proxy.manual.socks_proxy.version variable can be deactivated (and therefore not usable in a calculation).

In this case, we will add a parameter (here called socks_version) which will contain, if there is no property error, the value of the variable. Otherwise the parameter will not be passed to the Jinja template.

This is why it is necessary to test in the Jinja template whether the socks_version variable really exists.

The DNS over HTTPS

Finally we will configure DNS over HTTPS in the 10-proxy_dns_over_https.yml file:

Let’s create a dict/10-proxy_dns_over_https.yml file:

the dict/10-proxy_dns_over_https.yml file
 1 ---
 2 version: '1.0'
 3 proxy:
 4   dns_over_https:
 5     description: DNS over HTTPS
 6     enable_dns_over_https:
 7       description: Enable DNS over HTTPS
 8       type: boolean
 9       default: false
10     provider:
11       description: Use Provider
12       type: choice
13       choices:
14         - Cloudflare
15         - NextDNS
16         - Custom
17       default: Cloudflare
18       disabled:
19         type: jinja
20         jinja: |
21           {% if not rougail.proxy.dns_over_https.enable_dns_over_https %}
22           Enable DNS over HTTPS is False
23           {% endif %}
24     custom_dns_url:
25       description: Custom DNS URL
26       type: web_address
27       disabled:
28         type: jinja
29         params:
30           provider:
31             type: variable
32             variable: rougail.proxy.dns_over_https.provider
33             propertyerror: false
34         jinja: |
35           {% if provider is not defined or provider != 'Custom' %}
36           provider is not custom
37           {% endif %}
38       validators:
39         - type: jinja
40           jinja: |
41             {% if rougail.proxy.dns_over_https.custom_dns_url.startswith('http://') %}
42             only https is allowed
43             {% endif %}

The only particularity here is that we added additional validation (validators) to the custom_dns_url variable. Only an address starting with https:// is allowed (not http://).

The FoxyProxy type’s proxy configuration

Here is now the integration of part of the Firefox FoxyProxy plugin.

The idea is to have a namespace specific to FoxyProxy and to find in it part of the settings that we will have made in the main namespace.

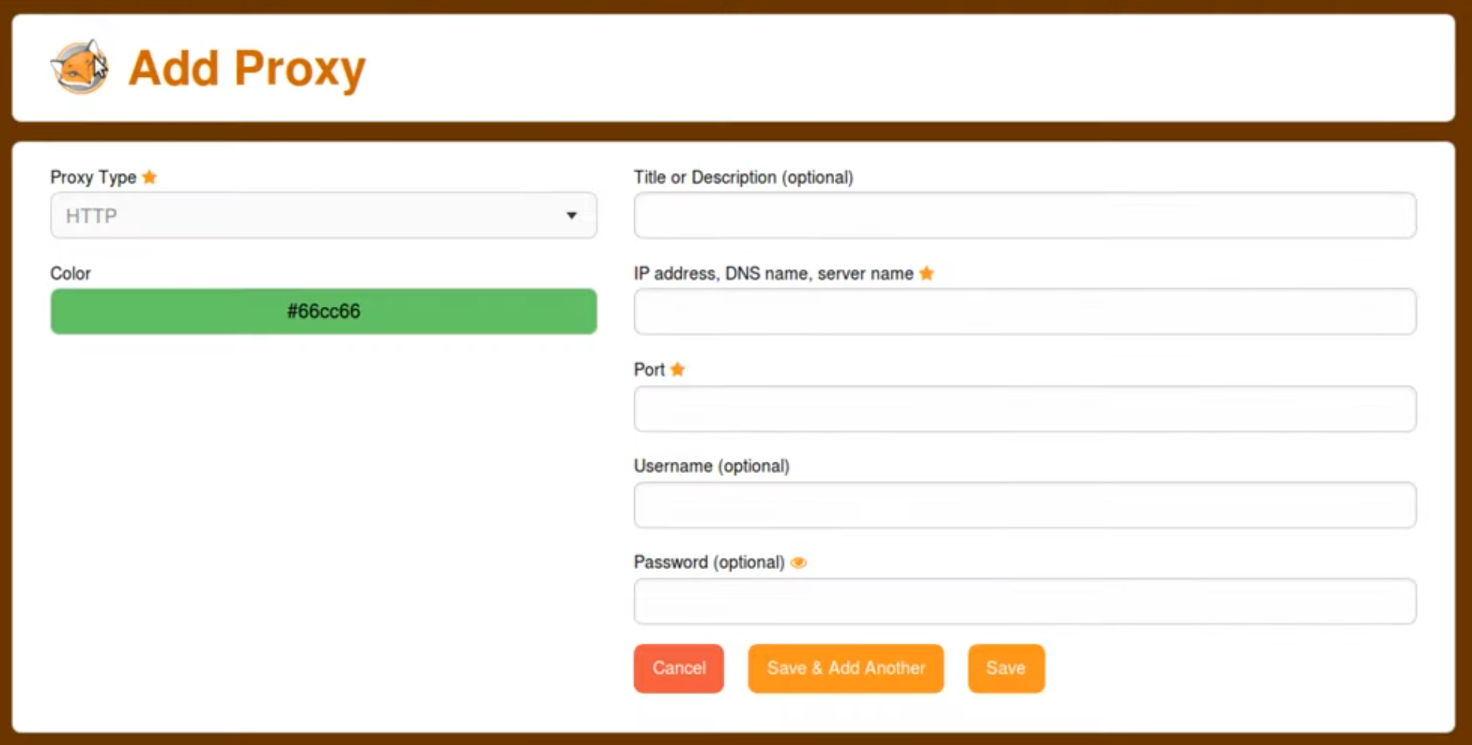

This is what the page looks like:

_images/foxyproxy.png

It is possible, in this plugin, to specify an unlimited number of proxies. Our proxy family will no longer be of the family type as before but of another type : the leadership type.

Here is the complete content of the FoxyProxy type proxy configuration (to be put in the foxyproxy/00-base.yml file):

the :file:foxyproxy/00-base.yml file
 1 ---
 2 version: '1.0'
 3 proxy:
 4   _type: leadership
 5   title:
 6     description: Title or Description
 7     multi: true
 8   color:
 9     description: Color
10   type:
11     type: choice
12     choices:
13       - HTTP
14       - HTTPS/SSL
15       - SOCKS5
16       - SOCKS4
17       - PAC URL
18       - WPAD
19       - System (use system settings)
20       - Direct (no proxy)
21     default: Direct (no proxy)
22   address:
23     description: IP address, DNS name, server name
24     multi: true
25     disabled:
26       type: jinja
27       jinja: |
28         {% if foxyproxy.proxy.type not in ['HTTP', 'HTTPS/SSL', 'SOCKS5', 'SOCKS4'] %}
29         proxy does not need address
30         {% endif %}
31     default:
32       type: jinja
33       params:
34         firefox_address:
35           type: variable
36           variable: rougail.proxy.manual.http_proxy.address
37           propertyerror: false
38       jinja: |
39         {% if firefox_address is not undefined %}
40         {{ firefox_address }}
41         {% endif %}
42   port:
43     description: Port
44     type: port
45     default:
46       type: jinja
47       params:
48         firefox_port:
49           type: variable
50           variable: rougail.proxy.manual.http_proxy.port
51           propertyerror: false
52       jinja: |
53         {% if firefox_port is not undefined %}
54         {{ firefox_port }}
55         {% endif %}
56     disabled:
57       type: jinja
58       jinja: |
59         {% if foxyproxy.proxy.type not in ['HTTP', 'HTTPS/SSL', 'SOCKS5', 'SOCKS4'] %}
60         proxy does not need port
61         {% endif %}
62   username:
63     description: Username
64     type: unix_user
65     mandatory:
66       type: jinja
67       jinja: |
68         {% if foxyproxy.proxy.password %}
69         username is mandatory
70         {% endif %}
71     disabled:
72       type: jinja
73       jinja: |
74         {% if foxyproxy.proxy.type not in ['HTTP', 'HTTPS/SSL', 'SOCKS5', 'SOCKS4'] %}
75         proxy does not need username
76         {% endif %}
77   password:
78     description: Password
79     type: secret
80     disabled:
81       type: jinja
82       jinja: |
83         {% if foxyproxy.proxy.type not in ['HTTP', 'HTTPS/SSL', 'SOCKS5', 'SOCKS4'] %}
84         proxy does not need password
85         {% endif %}
86   url:
87     type: web_address
88     disabled:
89       type: jinja
90       jinja: |
91         {% if foxyproxy.proxy.type not in ['PAC URL', 'WPAD'] %}
92         proxy does not need url
93         {% endif %}

A few comments:

  • in the foxyproxy.proxy leader family there is a variable named type (line 4), this may conflict with the type attribute (specified line 10). In this case, to specify the type we use the _type attribute

  • a follower variable can also be multiple (which is the case for foxyproxy.proxy.address)

  • foxyproxy.proxy.username (line 62) becomes mandatory if foxyproxy.proxy.password is specified, in fact a password without a username is meaningless

Let’s test it:

>>> from rougail import Rougail, RougailConfig
>>> from pprint import pprint
>>> RougailConfig['dictionaries_dir'] = ['dict']
>>> RougailConfig['extra_dictionaries']['foxyproxy'] = ['foxyproxy/']
>>> rougail = Rougail()
>>> config = rougail.get_config()
>>> config.option('rougail.proxy.proxy_mode').value.set('Manual proxy configuration')
>>> config.option('rougail.proxy.manual.http_proxy.address').value.set('proxy.example')
>>> config.option('foxyproxy.proxy.title').value.set(['MyProxy'])
>>> config.option('foxyproxy.proxy.type', 0).value.set('HTTP')
>>> config.option('foxyproxy.proxy.color', 0).value.set('#00000')
>>> config.property.read_only()
>>> pprint(config.value.get(), sort_dicts=False)

The output is:

{'rougail.proxy.proxy_mode': 'Manual proxy configuration',
 'rougail.proxy.manual.http_proxy.address': 'proxy.example',
 'rougail.proxy.manual.http_proxy.port': '8080',
 'rougail.proxy.manual.use_for_https': True,
 'rougail.proxy.manual.ssl_proxy.address': 'proxy.example',
 'rougail.proxy.manual.ssl_proxy.port': '8080',
 'rougail.proxy.manual.socks_proxy.address': None,
 'rougail.proxy.manual.socks_proxy.port': None,
 'rougail.proxy.manual.socks_proxy.version': 'v5',
 'rougail.proxy.no_proxy': [],
 'rougail.proxy.proxy_dns_socks5': False,
 'rougail.proxy.dns_over_https.enable_dns_over_https': False,
 'foxyproxy.proxy.title': [{'foxyproxy.proxy.title': 'MyProxy',
                            'foxyproxy.proxy.color': '#00000',
                            'foxyproxy.proxy.type': 'HTTP',
                            'foxyproxy.proxy.address': ['proxy.example'],
                            'foxyproxy.proxy.port': '8080',
                            'foxyproxy.proxy.username': None,
                            'foxyproxy.proxy.password': None}]}

The choice we made here is to make foxyproxy.proxy.username mandatory if a password is specified in the foxyproxy.proxy.password variable.

It makes sense to have a username without a password (in this case the password will be requested when connecting to the proxy). But the opposite does not make sense.

From a user point of view this may seem disturbing (if you enter the password, you have to return to the previous option to specify the password).

It is possible to reverse the logic. If the foxyproxy.proxy.username variable is set, the foxyproxy.proxy.password variable becomes editable.

None of this two variables needs to be mandatory.

If you prefer this option, here is a second extra dictionary foxyproxy/01-redefine.yml which will redefine the behavior only of the foxyproxy.proxy.username and foxyproxy.proxy.password variables:

the foxyproxy/01-redefine.yml file
 1 ---
 2 version: '1.0'
 3 proxy:
 4   username:
 5     redefine: true
 6     # suppress mandatory constrainte
 7     mandatory: false
 8   password:
 9     redefine: true
10     hidden:
11       type: jinja
12       jinja: |
13         {% if not foxyproxy.proxy.username %}
14         no username defined
15         {% endif %}

It’s up to you to play now !
