Getting started

What is a consistency handling system ?

Question: “OK, I have understood that the Rougail stuff enables me to take advantage of Tiramisu. But what is all this for? What is exactly a consistency handling system? And again, what is this Tiramisu library used for?”

Answer: Well, let’s explain what Tiramisu is and how we are using the Tiramisu library.

Tiramisu

Tiramisu is a consistency handling system that was initially designed in the configuration management scope. To put it more simply, this library is generally used to handle configuration options.

It manages variables and group of variables. In the Tiramisu scope we call it options and option descriptions.

In the Rougail scope, we call it variables and families. In Rougail, the families and variables are located in the dictionaries.

And this is what we are going to explain in this page.

The dictionaries

dictionary

dictionaries

A dictionary in the Rougail meaning is a YAML file that describes variables and their dependencies / consistencies. There can be a lot of dictionary files located in many different folders.

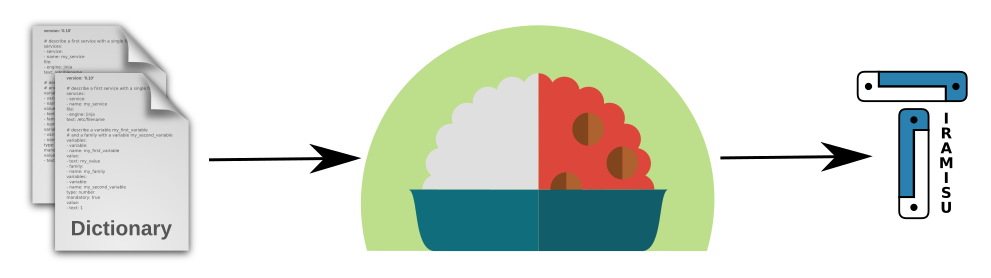

Rougail reads all the dictionaries and loads them into a single object that handles the variables consistency.

The main advantage is that declaring variables and writing consistency is a simple as writing YAML. It is not necessary to write Tiramisu code. It simplifies a lot of things.

And rather than writing Tiramisu code, we can declare variables and describe the relationships between variables in a declarative mode.

Once the dictionaries are loaded by Rougail, we find all the power of the Tiramisu configuration management tool.

The dictionaries YAML format

Before getting started with Rougail we need to learn the specifics of the YAML dictionaries file format (as well as some templating concepts).

Here is a dictionary example:

 ---
 version: '1.0'
 proxy:
   description: Configure Proxy Access to the Internet
   type: family

Line 3, we declare a variable named proxy with his description line 4 and his type line 5.

The variables

variable

Here is a second definition of a variable: it is a declaration unit that represents a business domain metaphor,

the most common example is that a variable represents a configuration option in a application, but a variable represents something more that a configuration option. It provides a business domain specific representation unit.

Note

dictionaries can just define a list of variables, but we will see that we can specify a lot more. We can define variables and their relations, and the consistency between them.

In the next step, we will explain through a tutorial how to construct a list of variables.

Families of variables

family
families: A family of variables is simply a collection of variables that refer to the same business model category. It’s just a variables container. Think of it as a container as well as a namespace.

A “hello world” with Rougail

We’re gonna make the simplest possible example.

Prerequisites

We assume that Rougail’s library is installed on your computer (or in a virtual environment).

Let’s make a Hello world

Here is the tree structure we want to have:

workplace
├── dict
│   ├── hello.yml
└── hello.py

Let’s make a workplace directory, with a dict subfolder.
First, we need a dictionary, so let’s make the hello.yml file which is located in the dict subfolder, with the following content:

The hello.yaml file

 ---
 version: '1.0'
 hello:
   default: world

Then we make a hello.py in our root workplace directory:

The hello.py file

 from rougail import Rougail, RougailConfig

 RougailConfig['dictionaries_dir'] = ['dict']
 rougail = Rougail()
 config = rougail.get_config()
 print(config.value.get())

Let’s run the hello.py script

We launch the script:

python hello.py

And we obtain the following result:

{'rougail.hello': 'world'}

Congratulations ! You have successfully completed your first Rougail script.

A “Hello, <name> ” sample with a family

Let’s continuing on our “Hello world” theme and add a family container.

the hello.yml file

 ---
 version: '1.0'
 world:
   description: Hello world family container
   name:
     description: Somebody to say hello
     default: rougail

Here, we have a family named world. This family contains a variable named name

Again, let’s validate this YAML file against Rougail’s API:

python hello.py

We then have the output:

{'rougail.world.name': 'rougail'}
